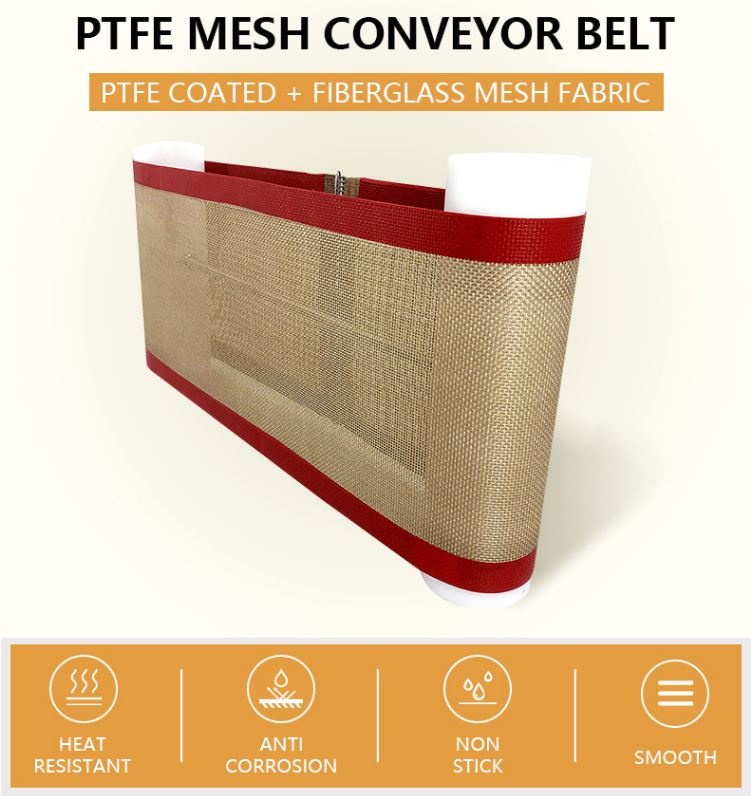

Temperature resist PTFE mesh conveyor belt

Short Description:

· FOB Price:US$1~20/square meter · Thickness:0.5~1.2mm · Grid size:1*1mm,2*2.5mm, 4*4mm, 6*6mm, 10*10mm · Edging color:red, white, black,brown, blue · Joint:bull nose joint, steel buckle joint, screw net joint, wall type joint · Supply Ability:10000 square meter/per month

Product Category

PTFE Mesh Belt

Consultation

Feature & Functions

Temperature resist PTFE mesh belt customize

We select advanced imported loom and high-quality imported glass fiber or Kevlar as basic weaving material. By weaving,the material can be made into high-intensity fiberglass mesh.Then, the mesh will be coated with excellent PTFE resin and then be made into PTFE(teflon) mesh conveyor belt.

Characteristic:

1. High temperature resistance. It can continuously work under -140 to 260℃ and max resist high temperature is up to 360℃.
2. Air permeability. It can avoid wasting heat and improve drying efficiency.
3. Chemical resistance.It can resist all most of chemical medicines.
4. Non-Sticky. It can easily remove all kinds of adhesives such as resin, paint and chemical medicines.
5. Good flex fatigue resistance. It has high tensile strength and excellent flex fatigue resistance. It's also used for small wheels.

Usages of the teflen conveyor belt:

The teflen conveyor belt is widely used in below industy:
-Non-woven fabrics, textile printing, silk printing, dyeing machine drying machine,screen printing UV machine.
-Used for garment fabric, high frequency and UV drying machine.
-Hot air dryer conveyor belt, various kinds of food baking, quick-freezing machine.
-Used for paper glazing and waxing, factory engineering.
-Used for cardboard production of separator plates and so on.

Specifications:

Item	Material	Size	Thickness	Weight	Temperature	Max Width	Strength
6001	Fiber Glass	1x1mm	0.5mm	370g/㎡	-70-260℃	4000mm	310/290N/cm
6002	Fiber Glass	2x2mm	0.7mm	450g/㎡	-70-260℃	4000mm	350/310N/cm
6004	Fiber Glass	4x4mm	1.0mm	400g/㎡	-70-260℃	4000mm	390/320N/cm
6004B	Fiber Glass	4x4mm	1.0mm	450g/㎡	-70-260℃	4000mm	390/320N/cm
6007	Kevlar+Fiber Glass	4x4mm	1.2mm	600g/㎡	-70-260℃	4000mm	895/370N/cm
6008	Fiber Glass	4x4mm	1.0mm	585g/㎡	-70-260℃	4000mm	395/370N/cm
6008B	Fiber Glass	4x4mm	1.0mm	585g/㎡	-70-260℃	4000mm	395/370N/cm
6013	Fiber Glass	10x10mm	1.2mm	450g/㎡	-70-260℃	4000mm	360/300N/cm
6015	Fiber Glass	0.5x1mm	0.5mm	420g/㎡	-70-260℃	4000mm	310/290N/cm
6025	Fiber Glass	2*2.5mm	0.9mm	600g/㎡	-70-260℃	3000mm	390/320N/cm

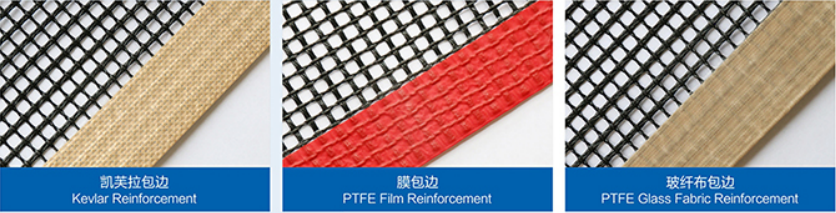

Edge Reinforcement style:

At present,Our company has a variety of edge reinforcement for customer to choose.
